Description

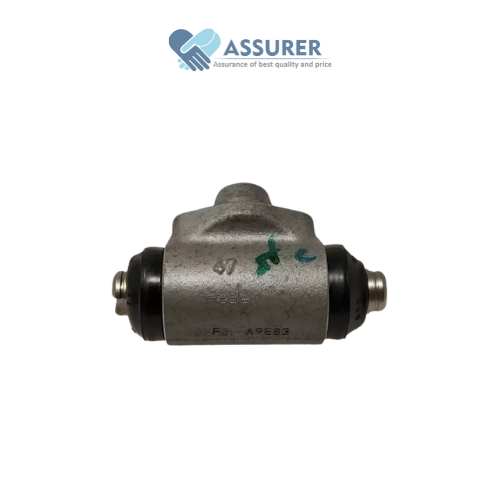

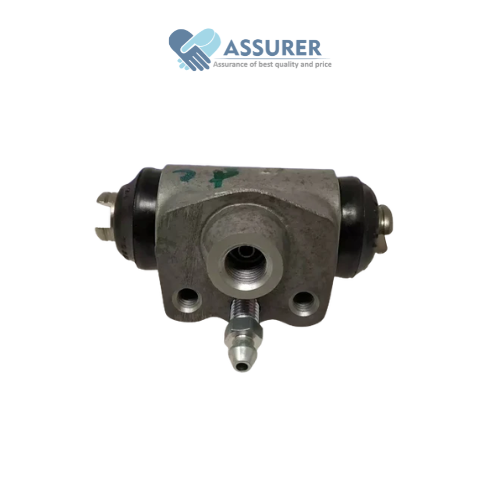

Maruti Suzuki Assy. RR Wheel Brake LH 53402M75J00
The Maruti Suzuki Assy. RR Wheel Brake LH 53402M75J00 is manufactured to strict original equipment manufacturer (OEM) standards, this dual-piston hydraulic wheel cylinder features an anodized cast alloy body with a micro-honed internal bore. High-grade EPDM piston cups and external dust boots withstand intense hydraulic pressure and high brake drum friction heat, preventing brake fluid leakage, internal piston sticking, and drum contamination. It includes a factory-calibrated bleeder screw for bubble-free hydraulic bleeding. Designed with exact mounting bolt centres, it secures directly to the rear-left backing plate without requiring modifications.
Specifications
-
Part Name: Cylinder Assy, Rear Wheel Brake L (Rear Left Wheel Brake Cylinder)
-
Part Number: 53402M75J00
-
Brand: Maruti Suzuki Genuine Parts (MSGP)
-
Category: Braking System / Drum Brakes & Wheel Cylinders
-
Fitting Position: Rear Axle Side, Outer Left-Hand Side (LH / Passenger Side in RHD)
-
Bore Diameter: 17.46 mm (11/16 in)
-
Dimensions (L × W × H): Approx. 8.00 cm × 6.00 cm × 5.00 cm
-
Net Weight: Approx. 220 g
-
Material: Die-cast aluminum alloy cylinder body with EPDM rubber seals
-
Installation Type: Direct OEM replacement (Bolt-on backing plate mounting)
Compatibility
-
Maruti Suzuki Swift [1st Gen]: 2005 – 2011
-
Maruti Suzuki Swift Dzire [1st Gen]: 2008 – 2012
-
Maruti Suzuki Ritz: 2009 – 2017
-
Maruti Suzuki Swift Dzire [3rd Gen Facelift & Tour S]: 2020 – 2024
-
Maruti Suzuki Swift [3rd Gen Facelift]: 2021 – 2024
-
Maruti Suzuki Baleno [3rd Gen]: 2022 – Present
-
Maruti Suzuki Fronx: 2023 – Present
